Product overview
Controlling Dust Where the Operator Is Standing
Manual sack tipping generates a concentrated dust cloud directly in an operator’s breathing zone. It is routinely the single highest-exposure task in a powder handling plant, and it is often the least well controlled.

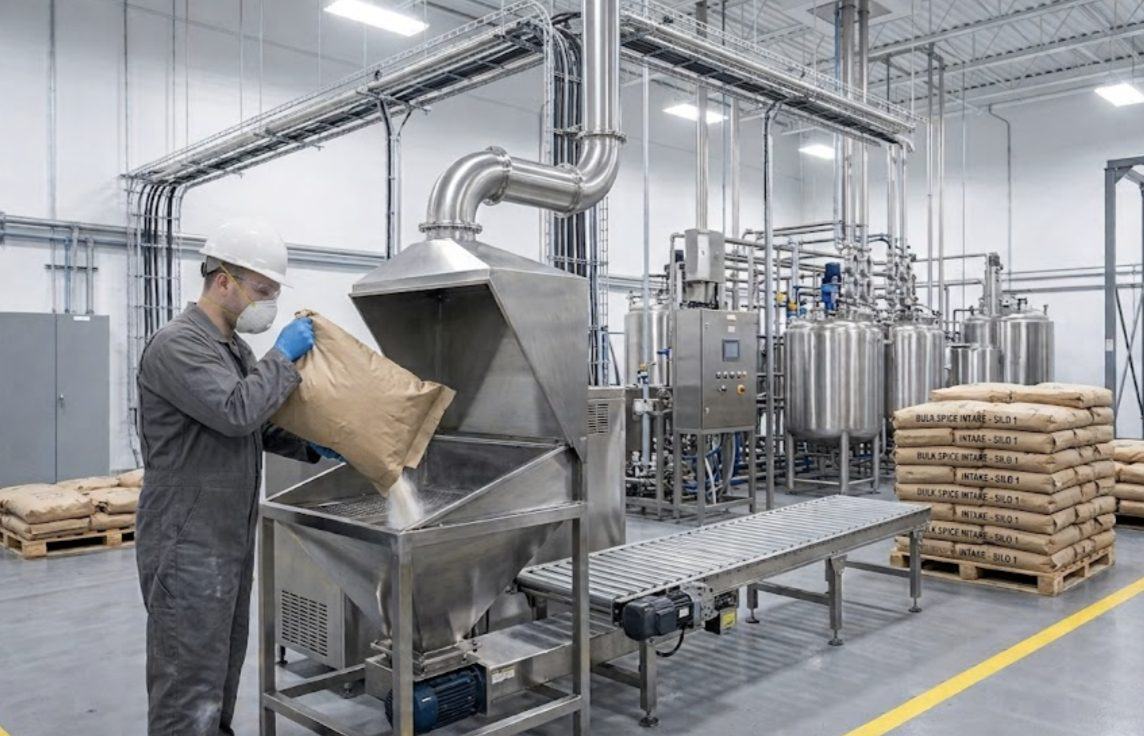

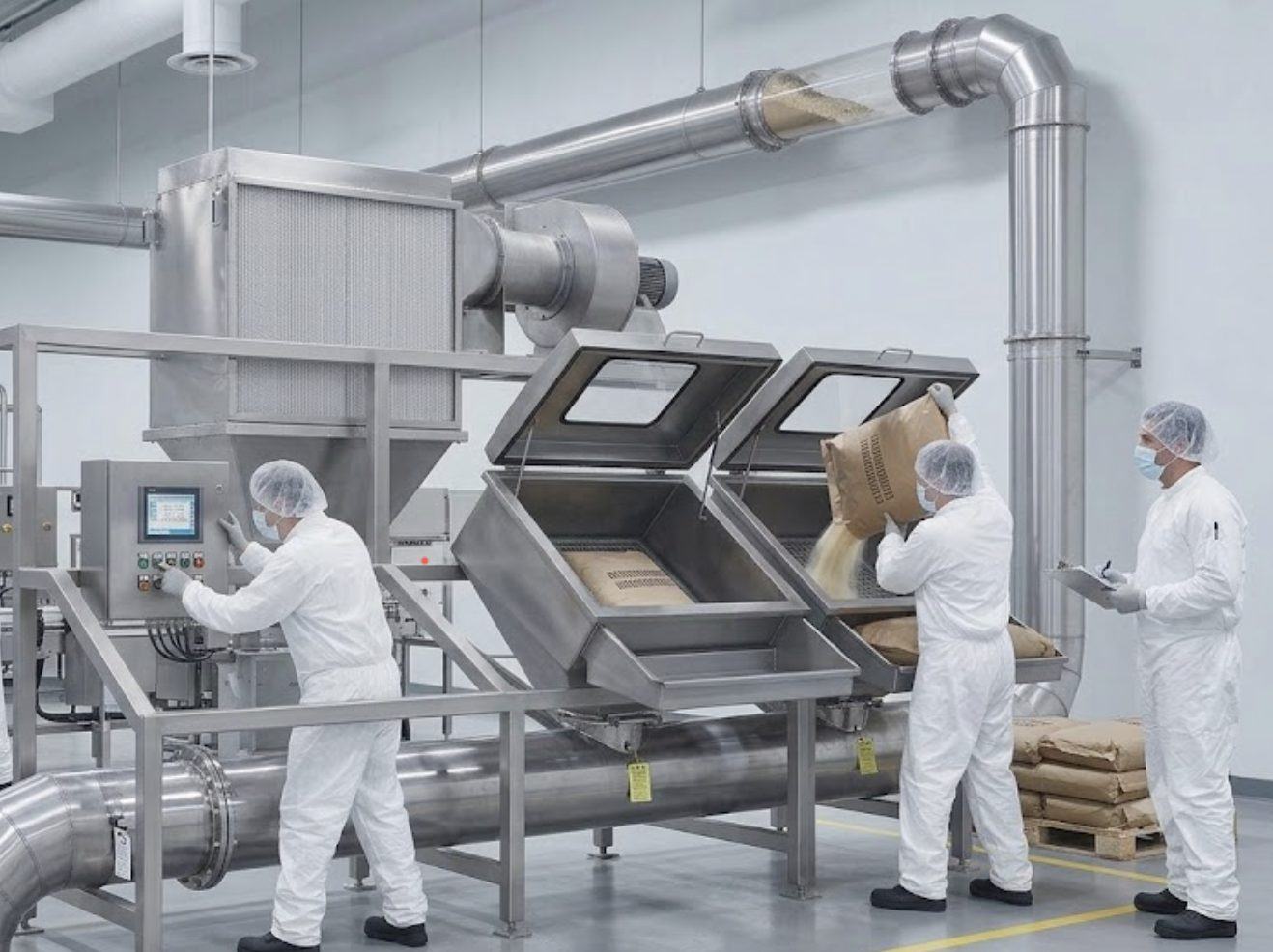

A bag dump station combines the tipping hood, a grate or screen, and integrated filtration into one unit. Air is drawn away from the operator rather than past them, dust is captured and pulsed back into the process, and the empty sack is compacted or disposed of within the same enclosure.
Where the powder is combustible — flour, sugar, starch, many chemical intermediates — the station also needs grounding, and often venting, designed against the same Dust Hazard Analysis as the rest of the system.
Key features
Configuration & Capability
Operator Protection
Airflow drawn away from the breathing zone at the point of tipping.
- Engineered hood geometry
- Consistent face velocity
- Reduces reliance on respirators
Sanitary Construction
Stainless configurations for food and pharmaceutical duty.
- 304 and 316L available
- Smooth welds, wash-down capable
- Removable grate for cleaning
Integrated Filtration
Onboard cartridge or bag filtration with pulse cleaning.
- Dust returns to the process
- No separate collector required
- Compact single-unit installation
Combustible Dust Ready
Grounding, bonding, and venting where the powder demands it.
- Continuous bonding provisions
- Venting per DHA
- Static control detailing
Technical specifications
Specifications
Standard ranges — every unit configured to application
| Filtration | Integrated cartridge or bag with pulse cleaning |
| Construction | Carbon steel; 304 / 316L stainless |
| Grate | Removable, load-rated |
| Bag compaction | Optional integrated compactor |
| Discharge | To hopper, conveyor, or process vessel |
| Combustible service | Grounding, bonding, venting per DHA |
Industries
Where It Works
Sanitary
Food & Baking
Flour, sugar, and dry ingredient charging.
Exposure control
Chemical
Powder intermediate and additive charging.
Containment
Pharmaceutical
Excipient and API handling under containment.
Process
Plastics
Additive and masterbatch charging at extrusion.
Fine powder
Paint & Coatings
Pigment and filler charging into mixers.
Bulk
Pet Food
Premix and micro-ingredient addition.
Common questions
FAQs
Does a bag dump station replace a respirator programme?
It substantially reduces exposure at the task, which is the correct hierarchy-of-controls answer — engineering control before PPE. Whether respirators remain necessary depends on your material and your measured exposure levels.
Can it handle combustible powders?
Yes, with grounding, bonding, and venting specified against your DHA. Flour and sugar stations in particular need this designed in rather than added.
Proof in service
Where this has been done
Food Processing

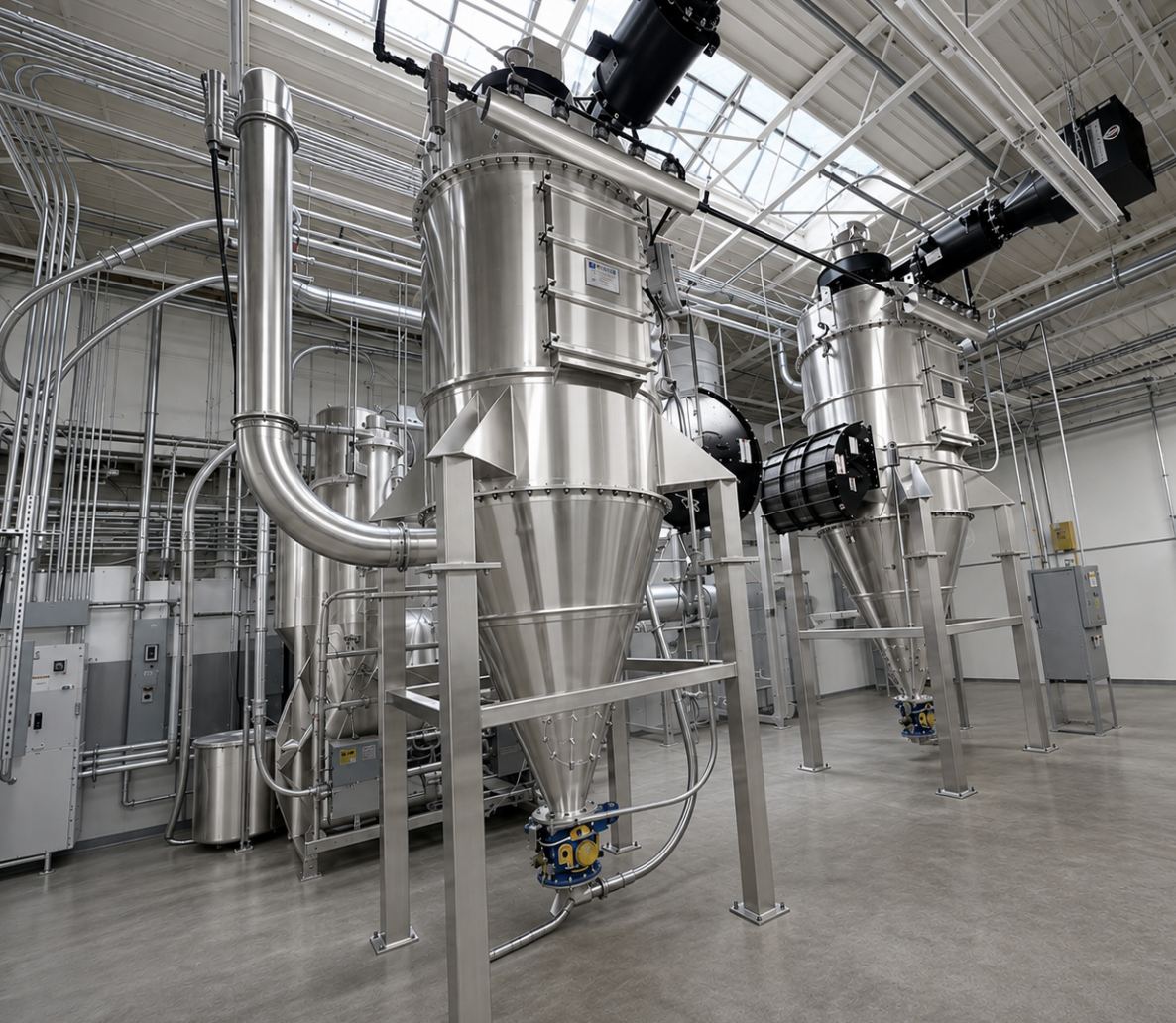

Sanitary Stainless Collection for a Food Plant
Manual charging captured at source, in construction that cleans to food standard.
Tell Us About Your Application
Send us your airflow, dust type, temperature, and plant constraints. Our engineers will size and configure a system for your process — and tell you plainly if something else would serve you better.
